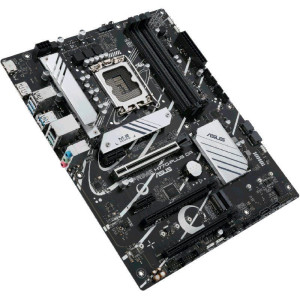

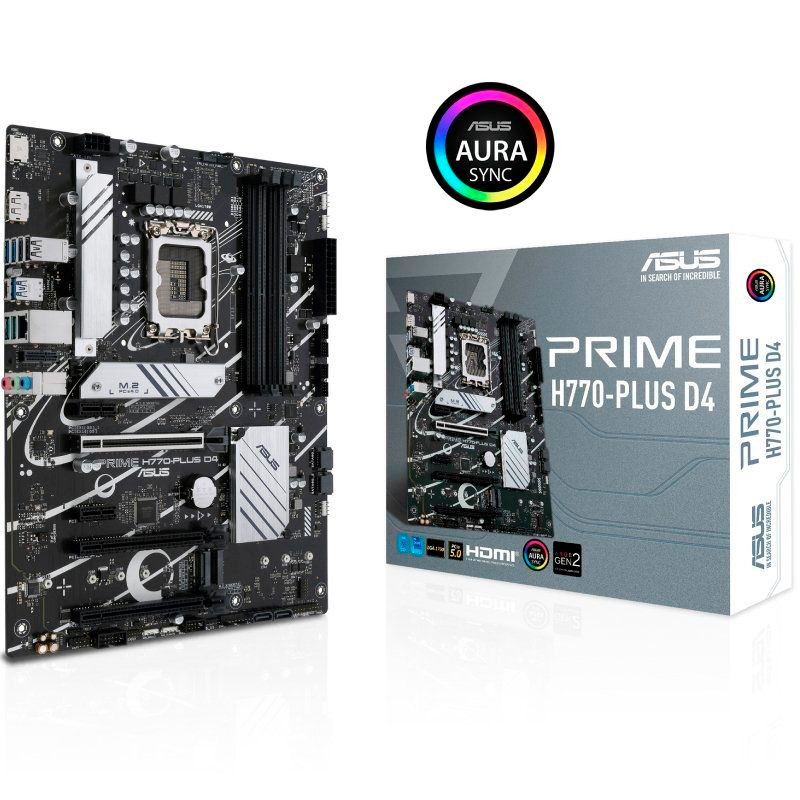

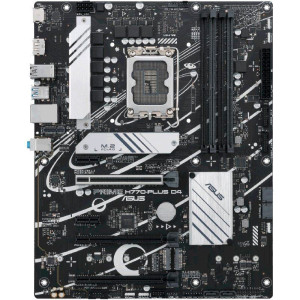

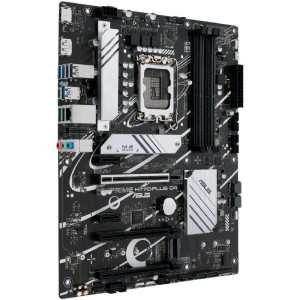

PLACA BASE ASUS H770-PLUS D4 LGA 1700

La placa base ASUS PRIME H770-PLUS D4 diseñada para procesadores híbridos Intel Core de 12ª y 13ª generación es ideal para montar un sistema potente y versátil. Las placas base ASUS Prime están diseñadas y fabricadas para usuarios exigentes que buscan un rendimiento constante y fiabilidad a largo plazo. Aprovechan al máximo sus componentes con un diseño único hecho de materiales robustos y utilidades exclusivas. Incorporan funciones profesionales y combinan las ventajas de los nuevos procesadores Intel con el diseño y las características icónicas de ASUS.
Características:

Compatibilidad con los procesadores Intel Core de 12ª y 13ª generación en el zócalo LGA 1700
Compatible con memoria DDR4, hasta 5066 MHz (OC)
3 ranuras M.2 PCIe 4.0 + 4 puertos SATA 6 Gbps
Ranura PCI-Express 3.0 16x
ASUS 5X PROTECTION III con DIGI+ VRM, LANGuard, Protección contra sobretensión
LAN de 2,5 GbE + ranura M.2 para módulo Wi-Fi (no incluido)
Compatible con ventiladores Aura Sync y ARGB

Especificaciones

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H770 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® H770 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth®
Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB

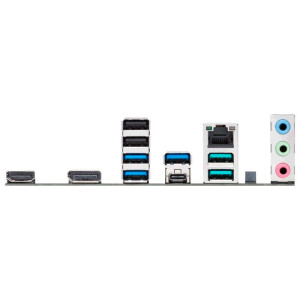

Rear USB (Total 8 ports)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 G
